General guidelines for generators

At Powder River Energy there are a couple guidelines that we request generator owners to follow that help our crews stay safe when working on a service with a generator. These apply primarily to residential installations. For commercial or medium-voltage installations please contact Powder River Energy with any questions.

• Provide a minimum of 5 feet around the base of our pole or from our equipment.  This allows adequate working space to replace a pole that is aged or damaged.
• Provide a similar working clearance from the face of the meter base to provide access to the meter and Powder River Energy’s wiring into the meter base.
• Pole attachments are discouraged per Powder River Energy Rules and Regulation on page 19R. Typically, the transfer switch or junctions should be placed on racking or posts and not on Powder River Energy poles.
• The transfer switch, whether automatic or manual, should be a break-before-make style that prevents paralleling of the utility source to the generator when operating. This prevents the possibility of the generator backfeeding onto the utility system and creating an unsafe condition for linemen.
• The transfer switch should also provide a way to verify the utility source is isolated when the generator is operating.  This is often referred to as a visible break.

Below is some additional information around the safe operation of a generator.  Your generator supplier and electrician should be your first point of contact regarding your installation and how you should operate your equipment.

Generators

Having a back-up generator can be convenient, but safety is key both for you and utility workers. There are two types of generators, portable and permanent.

The use of a generator must follow the National Electric Code and codes of local enforcing authorities. You can get code information from state electrical inspectors at the Wyoming Department of Fire Prevention and Electrical Safety.

Your generator supplier may not have all the necessary code information, but the electrical contractor installing the generator should comply with all existing codes.

Portable Generators

A portable generator is less expensive and more flexible, but can only power one or two appliances at a time.

Permanent Generators

Permanent generators are wired directly into the electrical system of your home. This is a more expensive option and one that requires the help of a licensed electrician.

Permanent generators can be worth the extra expense if you want enough emergency electricity to keep several appliances operating and if you expect to have to use a generator fairly frequently.

Generator Safety

Generators can keep critical parts of your home going during a power outage, but be careful not to let deadly carbon monoxide creep in. The last thing you want during a power outage is to let a silent killer into your home.

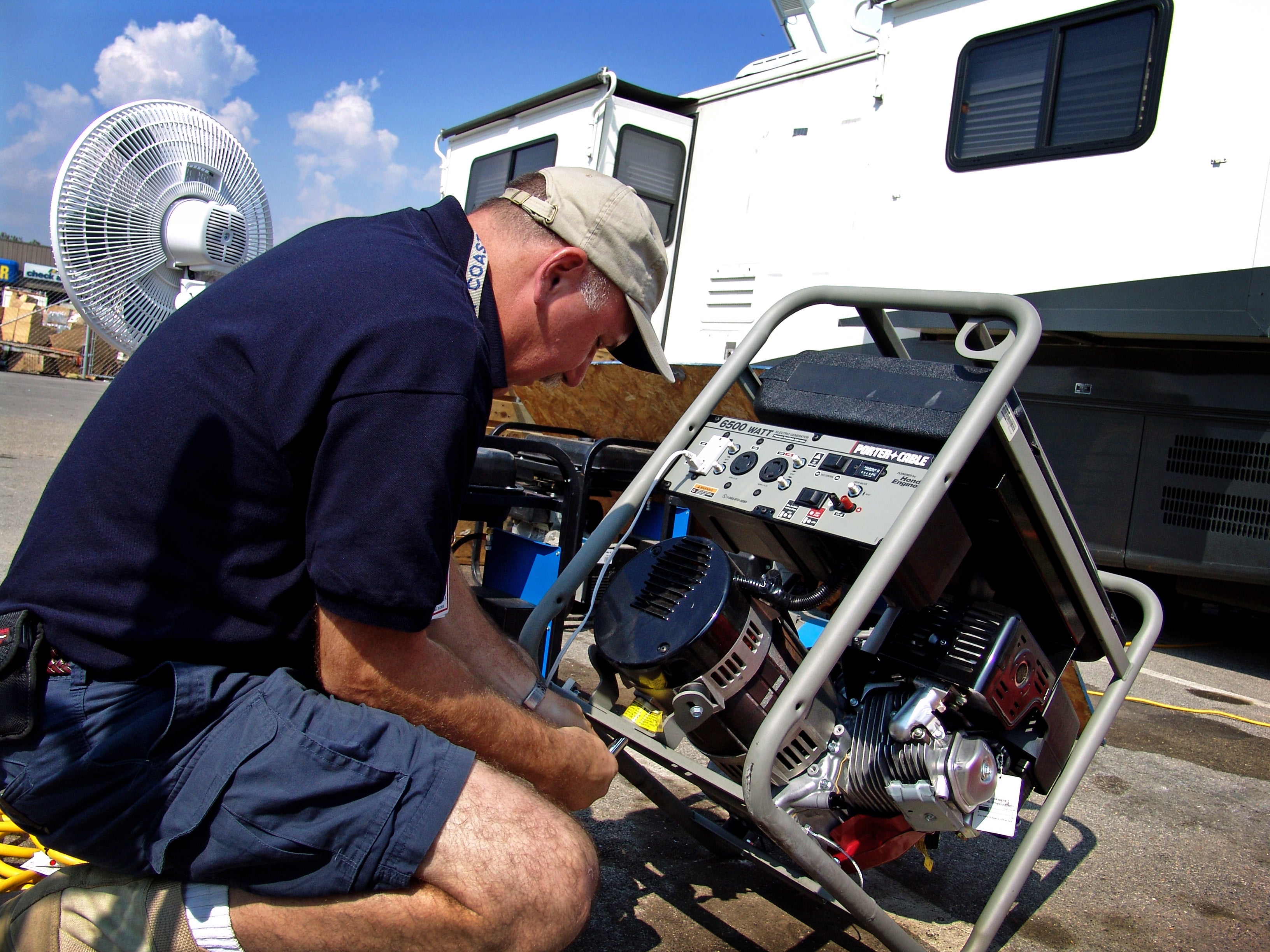

A portable generator can be helpful during storm season, especially in rural areas where power outages can last longer. But, take care where you place yours. The exhaust from a generator, like from any combustion engine, is dangerous. A small generator puts out a hundred times more carbon monoxide than car exhaust, because it lacks emission controls for filtering exhaust fumes.

Never place a generator in a garage, carport or enclosed area where fumes will build up. Before starting it, situate the generator in a safe area outdoors, far away from doors and windows, with three or four feet of clearance on all sides for ventilation and cooling.

Put the generator in a dry location that’s as far from your home as possible. If needed, you can use a portable canopy to shield it from rain. However, always point the exhaust away from your home. Even then, wind can blow the fumes toward the house and into your home, where it builds up.

Carbon monoxide can also build up in a garage or any enclosed area and it might not have a noticeable smell. Breathing it can make your family experience flu-like symptoms — weakness, headaches, upset stomach, vomiting, dizziness, chest pain and confusion. When people breathe too much exhaust in, they pass out and can die if they don’t get fresh air immediately.

A battery-powered carbon monoxide alarm can alert family members if the gas is building up indoors before it’s too late. Someone asleep won’t feel the typical symptoms and may die unless awakened. When anyone shows these symptoms, or the alarm goes off, get outside right away. Then air out your house by opening all the doors and windows to let the poisonous gas escape before going back in.

Generating only about 2,000 to 7,000 watts, portable generators can’t power your entire home. Plugging the generator into an electrical outlet inside your home, or running it through the electrical panel without a professionally installed cut-off switch is extremely dangerous and will put utility crews in life-threatening danger. Instead, plug an extension cord directly from the generator into an appliance. Use a heavy-duty extension cord rated for the size of your generator to “rotate the power to appliances on an as needed basis — run the refrigerator for a while, then the freezer, to keep the food inside cold and safe until power is back on.

During an outage, note these other generator safety issues, too:

• Never refuel a running generator. Any spills may ignite a fire.
• Reduce the chance of tripping accidents by placing the extension cord out of the way, so no one will stumble over it.
• Only use an outside extension cord with amperage rated for your appliances. A tag on the cord shows its rating. Never exceed the noted amperage of the cord when powering your appliances.
• Check your cord for cracks and breaks and replace it if you find any. Never use a patched cord or an indoor cord that’s too small for the generator’s output.
